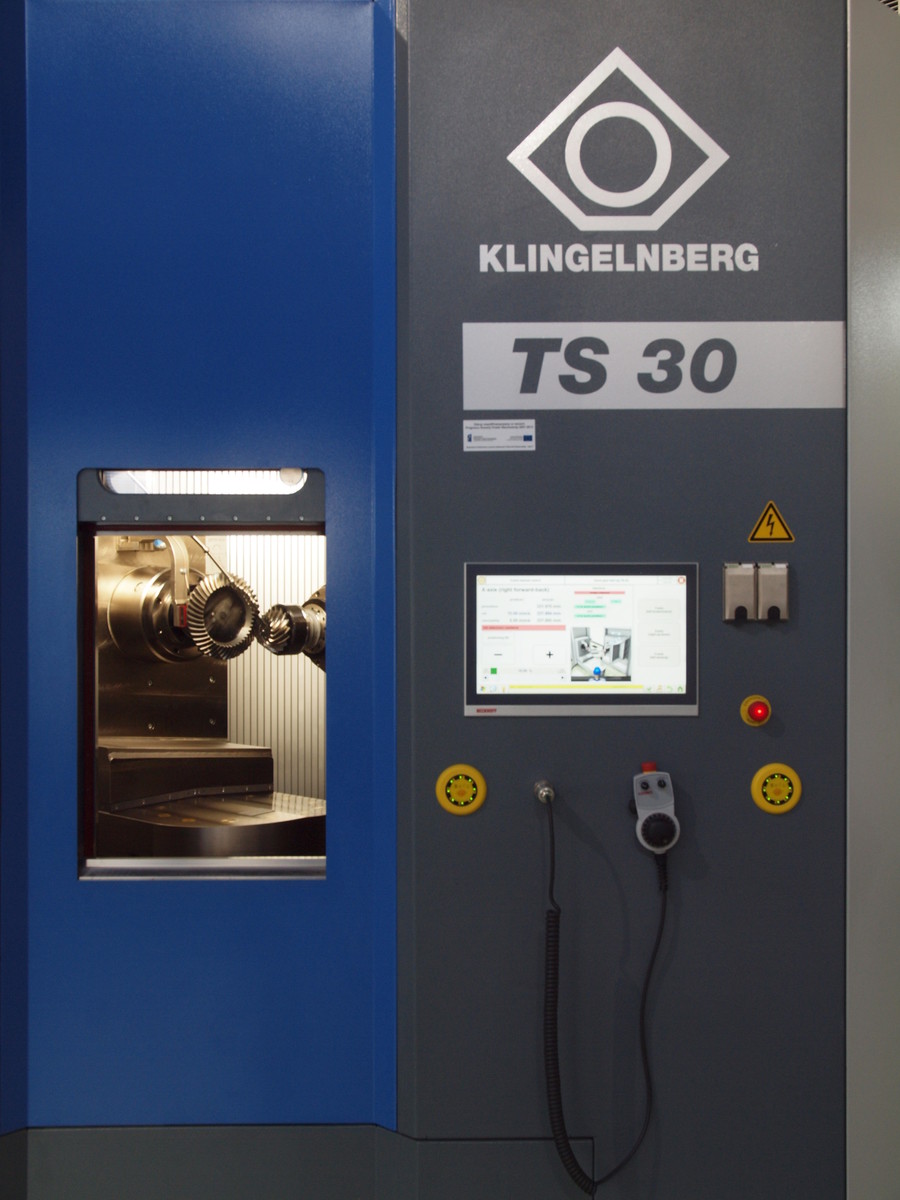

Bevel Gear Test Stand Klingelnberg TS30

red. Kamil Kucharski

This unique stand for fatigue strength of bevel and hypoid gears is used for programming research cycles which project the real conditions of gear performance. Tests conducted in the laboratory allow comprehensive study of a new design in respect of load capacity, vibration emission and the quality of performance as well as the safety of use, which is especially important for aircrafts. At the stand it is possible to carry out the analysis of the tooth contact patternand the kinematic accuracy of the loaded tooth contact, to measure the frequency of vibrations of the gear elements (spectral analysis of sound) and to measure the deflection at the root of a tooth in a dynamic mode with the use of the telemetry system. The measurements of the properties of functional gears can be conducted in their nominal setting and by taking into account assembly errors and  housing production deviations, which can occur in practice. Research cycles can be programmed individually and the measurement of torque, power and other parameters can be conducted in a continuous way.

 Technical data:

  1. possibility to test gears with diameters of disc wheels from 50 to 300 mm,
  2. operation of test gears with modules from 1.5 mm to 5 mm,
  3. operation of gears with gear ratios from approx. 1.0 to approx. 2.5,
  4. acceptable item weight: up to 20 kg,
  5. angle of the axis of the tested gears from 60 ° to 120 °,
  6. rotation speed up to 12,000 rpm, torque transfer max. 400 Nm at 1000 - 4500 rpm and max. 100 Nm at 12,000 rpm,
  7. measurement and recording: torque, power, noise emission, oil temperature, oil flow,
  8. the function of the test of one-side cooperation of the gear and the spectral analysis of the sound,
  9. telemetry system for measuring stresses at the tooth root in dynamic mode,
  10. pitting and fatigue strength test,
  11. equipment with a measuring system to control the set values related to the wheels of the tested gear (mounting distances of the pinion and wheel, axis angle, hypoid shift),
  12. automatic shutdown of the station after exceeding the set limit parameters,
  13. software supporting the station together with a PC,
  14. observation of gear operation in natural and strobe light.
